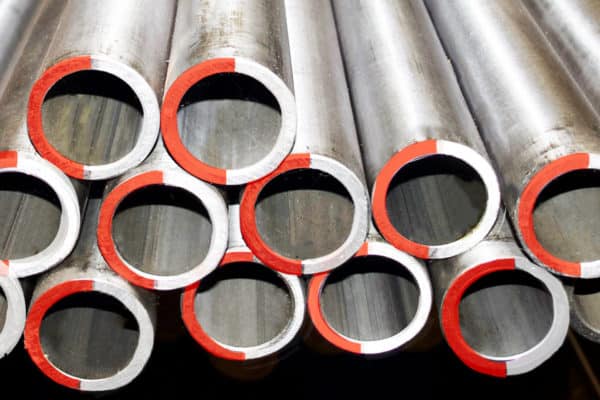

304L/1.4307 Stainless Hollow Bar

304L Stainless Hollow Bar is primarily used for the manufacture of radially machined components. The use of Hollow Bar and Mechanical Tubing is an economical and efficient means of supplying high-quality raw material and a sensible alternative to the use of solid bar as it reduces machining requirements and minimizes material wastage.

304L/1.4307 Stainless Hollow Bar is used in all sectors including; general engineering, automotive, agriculture, food, chemical, pharmaceutical and medical, etc.

To view 304L Stainless Hollow Bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:

Get a Quote Call Us Email Us
OD/ID (mm)Wall thickness (mm)Dimensions after machining - Chucked true to OD mmDimensions after machining - Chucked true to ID mm
32/168.031.0/18.030.0/17.0
32/206.031.0/21.930.1/21.0
36/1610.035.0/18.133.9/17.0
36/208.035.0/22.034.0/21.0
36/256.635.0/26.934.1/26.0
40/2010.039.0/22.137.9/21.0
40/257.539.0/27.038.0/26.0
40/286.039.0/29.936.1/29.0
45/2012.544.0/22.242.8/21.0
45/288.544.0/30.043.0/29.0
45/326.544.0/33.943.1/33.0
50/2512.549.0/27.247.8/26.0
50/329.049.0/34.147.9/33.0
50/367.049.0/38.048.0/37.0
56/2814.055.0/30.353.7/29.0
56/3610.055.0/38.153.9/37.0
56/408.055.0/42.054.0/41.0
63/3215.562.0/34.460.6/33.0
63/3613.562.0/38.360.7/37.0
63/4011.562.0/42.260.8/41.0
63/506.562.0/51.961.1/51.0
71/3617.569.9/38.568.4/37.0
71/4015.569.9/42.468.5/41.0
71/4513.069.9/47.368.6/46.0
71/567.569.9/58.068.9/57.0
75/4017.573.8/42.572.3/41.0
75/5012.573.8/52.572.7/51.0
80/4020.078.8/42.677.2/41.0
80/4517.578.8/47.577.3/46.0
80/5015.078.8/52.477.4/51.0
80/638.578.8/65.077.8/64.0
85/4520.083.7/47.682.1/46.0
90/5020.088.6/52.687.0/51.0
90/5617.088.6/58.587.1/57.0
90/6313.588.6/65.387.3/64.0
90/719.588.6/73.187.6/72.1
95/5022.593.5/52.791.8/51.0
100/5622.098.5/58.796.8/57.0
100/6318.598.5/65.597.0/64.0
100/7114.598.5/73.497.2/72.1
100/8010.098.5/82.397.4/81.2
106/5625.0104.4/58.9102.5/57.0
106/6321.5104.4/65.7102.7/64.0
106/7117.5104.4/73.5103.0/72.1
106/8013.0104.4/82.5103.1/81.2
112/6324.5110.3/65.8108.5/64.0
112/7120.5110.3/73.7108.7/72.1
112/8016.0110.3/82.6108.9/81.2
112/9011.0110.3/92.5109.2/91.4
118/6327.5116.2/66.0114.2/64.0
118/7123.5116.2/73.8114.5/72.1
118/8019.0116.2/82.8114.6/81.2
118/9014.0116.2/92.7114.9/91.4
125/7127.0123.1/74.0121.2/72.1
125/8022.5123.1/82.9121.4/81.2
125/9017.5123.1/92.8121.7/91.4
125/10012.5123.1/102.7121.9/101.5
132/7130.5130.0/74.2127.9/72.1
132/8026.0130.0/83.1128.1/81.2
132/9021.0130.0/93.0128.4/91.4
132/10613.0130.0/108.8128.8/107.6
140/8030.0137.9/83.3135.8/81.2
140/9025.0137.9/93.2136.1/91.4
140/10020.0137.9/103.1136.3/101.5
140/11214.0137.9/116.0136.6/113.7
150/8035.0147.7/83.6145.3/81.2
150/9527.5147.7/98.4145.7/96.4
150/10622.0147.7/109.3146.0/107.6
150/12512.5147.7/128.1146.5/126.9
160/11224.0157.6/115.5155.8/113.7
160/12219.0157.6/125.4156.0/123.8
160/13214.0157.6/135.3156.3/134.0
170/11826.0167.4/121.7165.5/119.8
170/13020.0167.4/133.6165.8/132.0
170/14015.0167.4/143.5166.0/142.1
180/12527.5177.3/128.9175.3/126.9
180/14020.0177.3/143.7175.7/142.1
180/15015.0177.3/153.6176.0/152.3
190/13229.0187.1/136.0185.1/134.0
190/15020.0187.1/163.9185.5/152.3
190/16015.0187.1/163.8185.7/162.4
200/14030.0197.0/144.2194.9/142.1
200/15025.0197.0/154.1195.2/152.3
200/16020.0197.0/164.0195.4/162.4
212/13041.0208.8/134.6206.2/132.0
212/17021.0208.8/174.2207.2/172.6
224/14042.0220.6/144.8217.9/142.1
224/18022.0220.6/184.4218.9/182.7
236/15043.0232.4/155.0229.7/152.3
236/19023.0232.4/194.6230.7/192.9
250/20025.0246.2/204.9244.3/203.0

EN NumberSymbolAISIUNSBS 970 1 983Material Standard
1.4307X2CrNi18-9304LS30403304S11EN 10088-3
