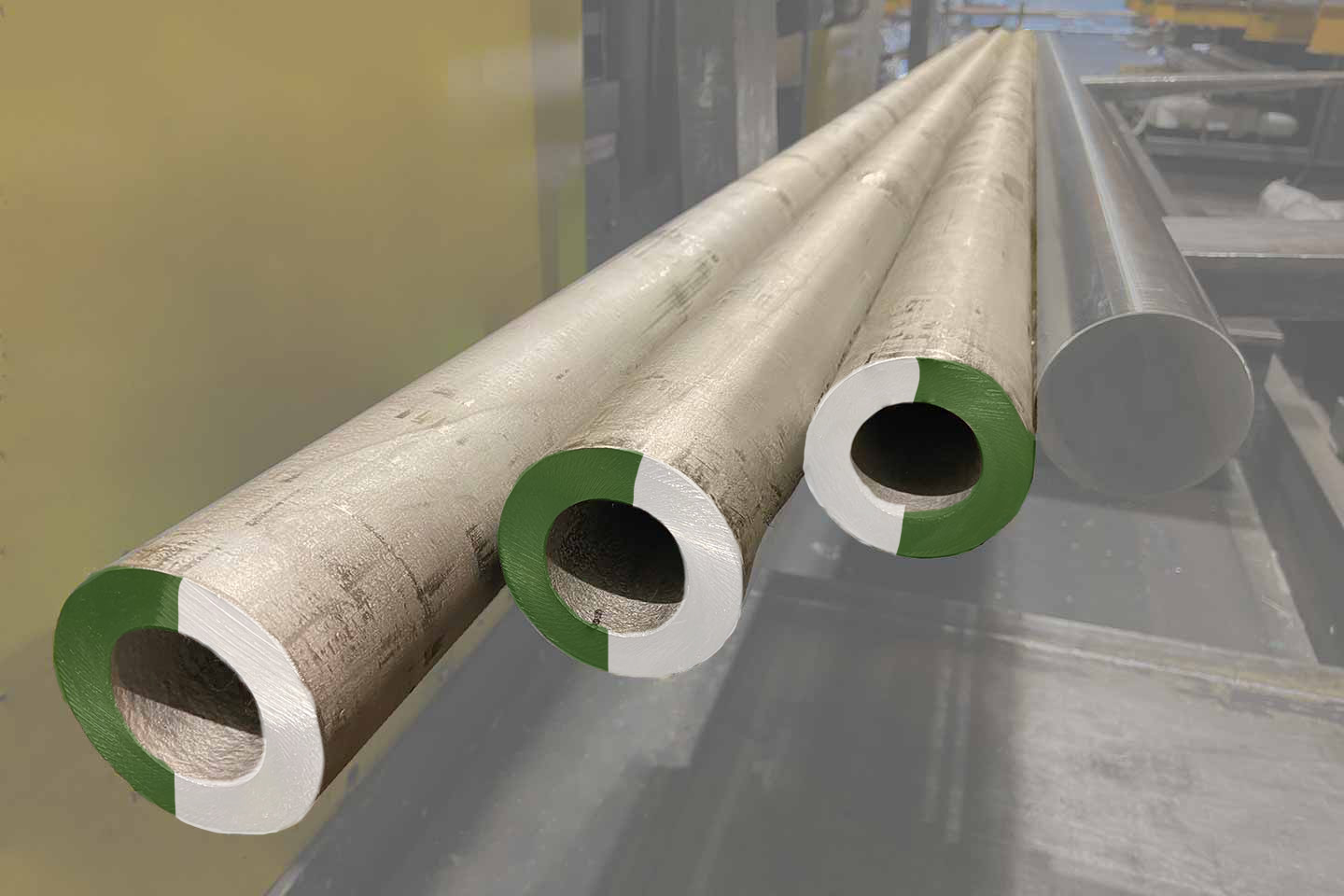

316L/1.4404 Stainless Hollow Bar

316L Stainless Tube is used in the production of a great variety of hollow products and cylindrical components where it is more economical to use hollow section rather than bore out solid stainless steel bar.

Normally used in conditions where corrosion & chemical resistance is required.

To view 316L Hollow Bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:


OD/ID (mm)Wall thickness (mm)Dimensions after machining - Chucked true to OD mmDimensions after machining - Chucked true to ID mm
32/168.031.0/18.030.0/17.0
32/206.031.0/21.930.1/21.0
36/1610.035.0/18.133.9/17.0
36/208.035.0/22.034.0/21.0
36/256.635.0/26.934.1/26.0
40/2010.039.0/22.137.9/21.0
40/257.539.0/27.038.0/26.0
40/286.039.0/29.936.1/29.0
45/2012.544.0/22.242.8/21.0
45/288.544.0/30.043.0/29.0
45/326.544.0/33.943.1/33.0
50/2512.549.0/27.247.8/26.0
50/329.049.0/34.147.9/33.0
50/367.049.0/38.048.0/37.0
56/2814.055.0/30.353.7/29.0
56/3610.055.0/38.153.9/37.0
56/408.055.0/42.054.0/41.0
63/3215.562.0/34.460.6/33.0
63/3613.562.0/38.360.7/37.0
63/4011.562.0/42.260.8/41.0
63/506.562.0/51.961.1/51.0
71/3617.569.9/38.568.4/37.0
71/4015.569.9/42.468.5/41.0
71/4513.069.9/47.368.6/46.0
71/567.569.9/58.068.9/57.0
75/4017.573.8/42.572.3/41.0
75/5012.573.8/52.572.7/51.0
80/4020.078.8/42.677.2/41.0
80/4517.578.8/47.577.3/46.0
80/5015.078.8/52.477.4/51.0
80/638.578.8/65.077.8/64.0
85/4520.083.7/47.682.1/46.0
90/5020.088.6/52.687.0/51.0
90/5617.088.6/58.587.1/57.0
90/6313.588.6/65.387.3/64.0
90/719.588.6/73.187.6/72.1
95/5022.593.5/52.791.8/51.0
100/5622.098.5/58.796.8/57.0
100/6318.598.5/65.597.0/64.0
100/7114.598.5/73.497.2/72.1
100/8010.098.5/82.397.4/81.2
106/5625.0104.4/58.9102.5/57.0
106/6321.5104.4/65.7102.7/64.0
106/7117.5104.4/73.5103.0/72.1
106/8013.0104.4/82.5103.1/81.2
112/6324.5110.3/65.8108.5/64.0
112/7120.5110.3/73.7108.7/72.1
112/8016.0110.3/82.6108.9/81.2
112/9011.0110.3/92.5109.2/91.4
118/6327.5116.2/66.0114.2/64.0
118/7123.5116.2/73.8114.5/72.1
118/8019.0116.2/82.8114.6/81.2
118/9014.0116.2/92.7114.9/91.4
125/7127.0123.1/74.0121.2/72.1
125/8022.5123.1/82.9121.4/81.2
125/9017.5123.1/92.8121.7/91.4
125/10012.5123.1/102.7121.9/101.5
132/7130.5130.0/74.2127.9/72.1
132/8026.0130.0/83.1128.1/81.2
132/9021.0130.0/93.0128.4/91.4
132/10613.0130.0/108.8128.8/107.6
140/8030.0137.9/83.3135.8/81.2
140/9025.0137.9/93.2136.1/91.4
140/10020.0137.9/103.1136.3/101.5
140/11214.0137.9/116.0136.6/113.7
150/8035.0147.7/83.6145.3/81.2
150/9527.5147.7/98.4145.7/96.4
150/10622.0147.7/109.3146.0/107.6
150/12512.5147.7/128.1146.5/126.9
160/11224.0157.6/115.5155.8/113.7
160/12219.0157.6/125.4156.0/123.8
160/13214.0157.6/135.3156.3/134.0
170/11826.0167.4/121.7165.5/119.8
170/13020.0167.4/133.6165.8/132.0
170/14015.0167.4/143.5166.0/142.1
180/12527.5177.3/128.9175.3/126.9
180/14020.0177.3/143.7175.7/142.1
180/15015.0177.3/153.6176.0/152.3
190/13229.0187.1/136.0185.1/134.0
190/15020.0187.1/163.9185.5/152.3
190/16015.0187.1/163.8185.7/162.4
200/14030.0197.0/144.2194.9/142.1
200/15025.0197.0/154.1195.2/152.3
200/16020.0197.0/164.0195.4/162.4
212/13041.0208.8/134.6206.2/132.0
212/17021.0208.8/174.2207.2/172.6
224/14042.0220.6/144.8217.9/142.1
224/18022.0220.6/184.4218.9/182.7
236/15043.0232.4/155.0229.7/152.3
236/19023.0232.4/194.6230.7/192.9
250/20025.0246.2/204.9244.3/203.0

AISIUNSBSEN NumberSymbolMaterial Standard
316LS31603316S111.44042CrNiMo17-12EN 10216-5
