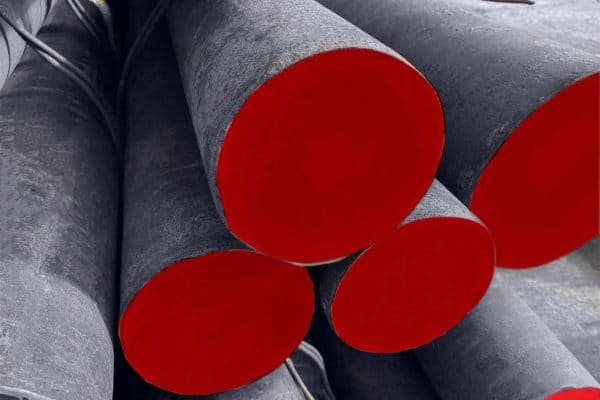

Ni-Resist Bar

Ni-Resist is a high nickel-metals used to resist acid, caustic and salt solutions. Ni-Resist has an austenitic structure matrix due to alloy and Nickel being present along with approx. 10% carbide.

Ni-Resist offers excellent resistance to heat, corrosion and wear, without being magnetic while retaining its machinability. It has the same coefficient of expansion as aluminium.

Typical applications: Parts for use in seawater, sulphuric acid, hydrochloric acid and petroleum refining. Valve guides, insecticide pumps, flood gates, piston ring inserts, seawater valves and pump bodies.

To view Ni-Resist Bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tags: ,


Rounds (mm) Dia
38.10
50.80
57.15
63.50
76.20
82.55
88.90
101.60
114.30
127.00
152.40
165.00
203.20
212

This is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

Steel NumberUNSSymbolMaterial Standard
201F41000NiCuCr1562ASTM A436
CSiMnNiCuChS
3.0.1.0-2.8.50-1.5013.5-17.55.5-7.51.5-2.50.12
