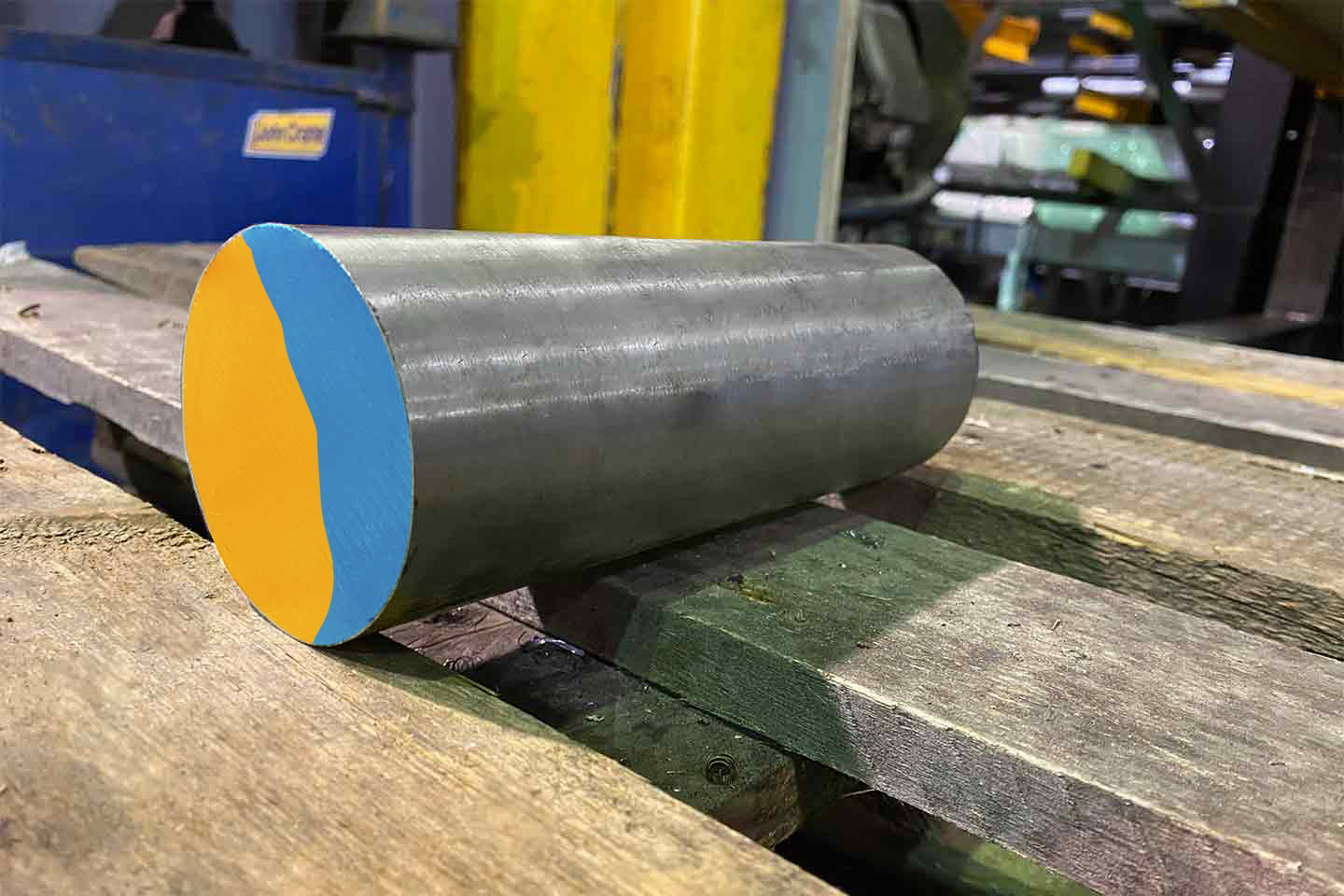

Titanium Gr5 Bar

Ti-6AL-4V (Grade 5, classed as an alpha-beta alloy is the most widely used of the high strength titanium alloys. Grade 5 combines its good mechanical strength and low density (4.42 kg/dm3) with excellent corrosion resistance in many media. Grade 5 is fully heat-treatable in section sizes up to 15 mm and is used up to approx 400 deg C (750 deg F).

Typical applications: Oil and gas, marine offshore and power generation, including the aerospace industry.

To view Titanium Gr5 Bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:


Rounds (mm) Dia
20.00
25.00
25.40
30.00
40.00
50.00
60.00
70.00
80.00
90.00
100.00
110.00
120.00
130.00
140.00
150.00
152.40
160.00
170.00
180.00
190.00
200.00
210.00
220.00
230.00
240.00
250.00
260.00
270.00
280.00
290.00
300.00

This is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

Steel NumberUNSMaterial StandardSymbol
3.7164R56400ASTM B348 Ti 6AI 4V
CFeNOAIVH SheetH BarH BilletTi
.08.25.05.25.5-6.753.5-4.5.015.0125.01Bal
