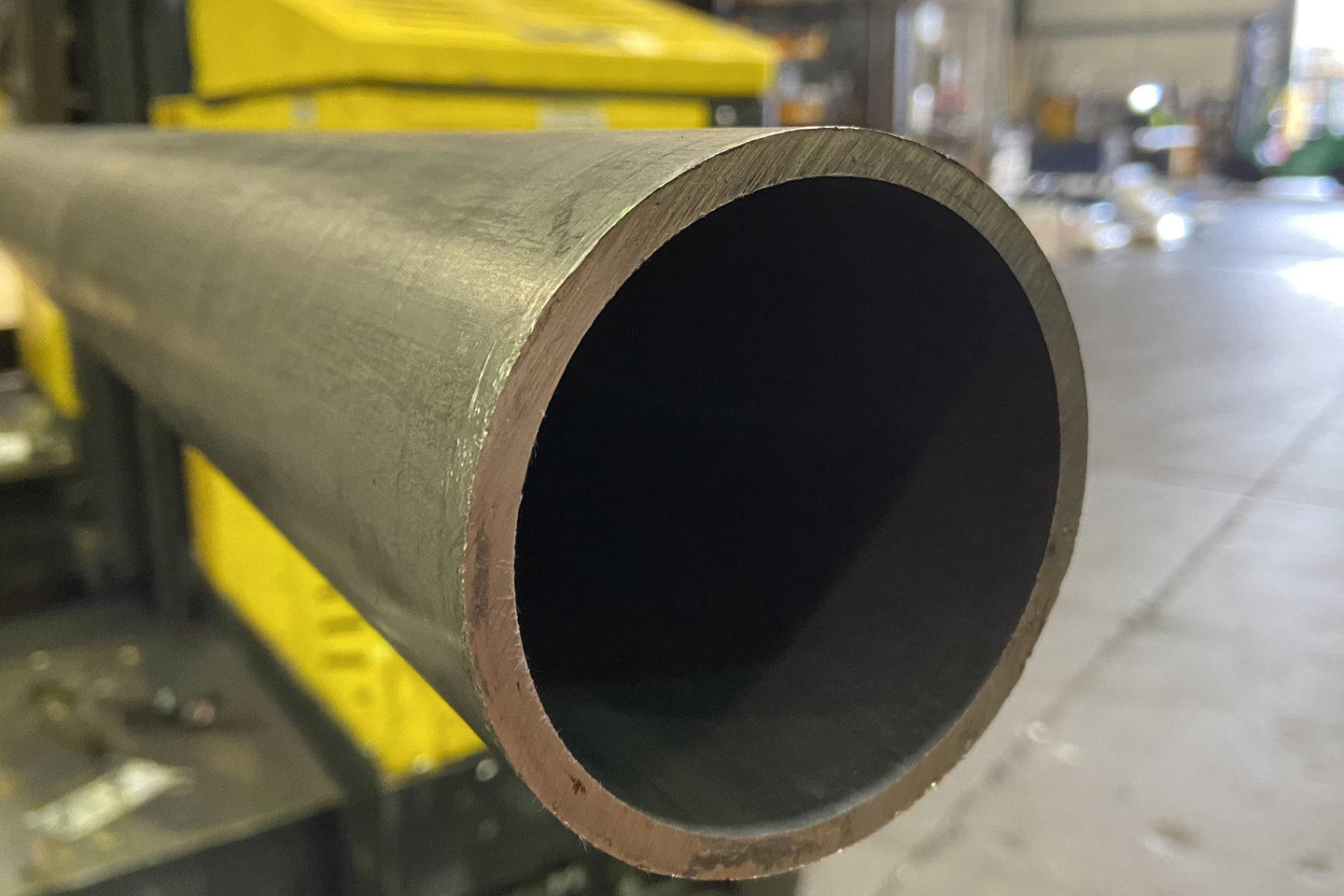

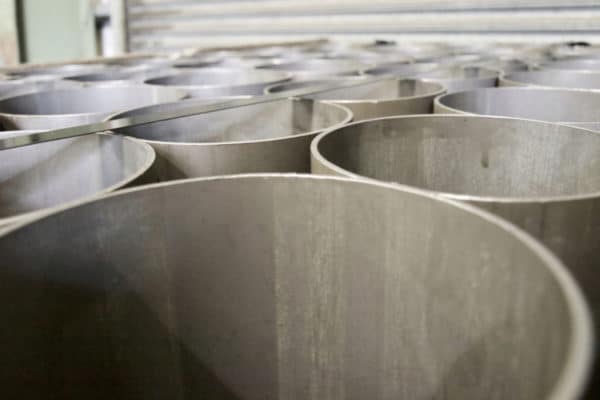

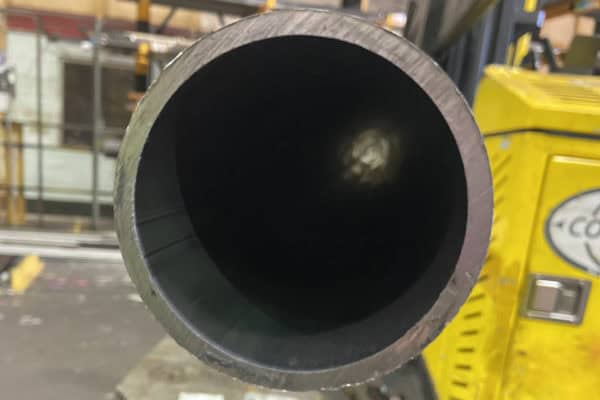

Smooth Bore Cylinder Tube

Home » Products » Hydraulic Range » Smooth Bore Cylinder Tube

Ready to use Smooth Bore Tubes for hydraulic cylinders with smooth mirror finish bore. Bore tolerance to h9. Smoothness to Ra 0.8. A full range of Cylinder tubes in Imperial and Metric dimensions in honed and suitable for honing conditions is also available. Imperial sizes range from 1 1⁄2 x 1 1⁄4 to 12″ x 11″ with metric sizes from 40 x 30 to 280 x 250.

To view Smooth Bore Tube chemical analysis, specification or shapes & sizes please click on the tabs below.

This product appears in: Hydraulic Range
Tag: hydraulic

Get a Quote Call Us Email Us

Standard Dimensions
Specification

OD (mm)	ID (mm)	Wall thickness (mm)
40	30	5
45	35	5
47.62	38.1	4.76
50	40	5
53.97	44.45	4.76
55	45	5
60	50	5
60.32	50.8	4.76
63.5	50.8	6.35
65	50	7.5
65	55	5
69.85	60.33	4.76
70	50	10
70	55	7.5
70	60	5
73	63	5
75	60	7.5
76.2	63.5	6.35
76.2	66.68	4.76
78	63	7.5
80	70	5
85	75	5
88.9	76.2	6.35
90	80	5
95	80	7.5
100	80	10
100	90	5
101.6	88.9	6.35
106	100	3
110	90	10
110	95	7.5
110	100	5
115	100	7.5

EN Number	UNS	Material Standard
ST37.2	E235	EN10305-2
