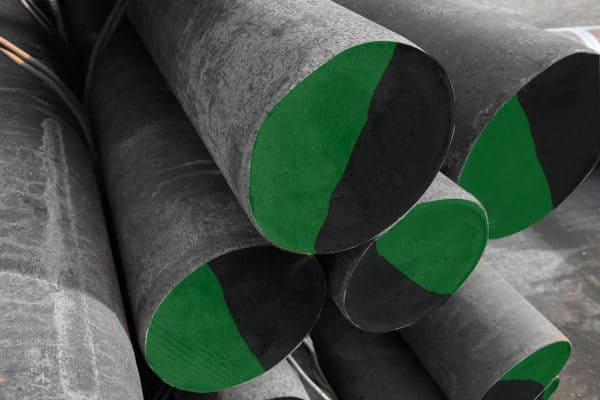

SAE 8620 Peeled Bar

SAE 8620 Peeled Bar is a low alloy case hardening steel, generally supplied in the as-rolled condition. Characterised by good core strength and toughness when carburised, hardened and tempered. 8620 (carburised) is used extensively by all industry sectors for light to medium stressed components and shafts requiring high surface wear resistance, core strength and impact properties.

Typical uses include Arbors, Bearings, Bushings, Cam Shafts, Guide pins, Piston pins, Splined shafts, Ratchets, Sleeves etc.

To view SAE 8620 chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:


Rounds (mm)
12.7
25.00
32.00
35.00
40.00
45.00
50.00
55.00
58.00
60.00
65.00
68.00
70.00
75.00
78.00
80.00
85.00
90.00
95.00
100.00
105.00
110.00
120.00
130.00
140.00
150.00
160.00
170.00
180.00
190.00
200.00

This is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

EN NumberSymbolMaterial Standard
1.6523805M20EN10084
CSiMnSPCrNi
.10/.16.10/.40.35/.60.04max.035max.70/1.03.0/3.75
