Nilo® Alloy 36

Nilo® 36 (Also known as Alloy 36, Invar 36, Dilaton41, FeNi36) is an iron-nickel controlled expansion alloy containing 36% nickel with a low and nominally constant coefficient of thermal expansion in the 20°C (85° F) range up to about 300°C (570 °F). Nilo® Alloy 36 is extensively used in the oil and gas, pharma, medical, electronics, automotive industries as well as many other precision engineers in various applications including bi-metal thermostat strips, thermostat rods, electronic tubes, glass to metal and ceramic to metal seals.

Colour Code:
Colour Code
This product appears in:


We hold a large range of Nilo® Alloy 36 stock in bars from 2inch right up to 10inch for immediate international dispatch. We also supply Nilo® 36 in plate & sheet. Where required we offer a cutting and drilling service to supply you with material to your specification and requirements. We have no minimum order requirement on Alloy 36 orders. All our metal is European produced material.

Beneficial Properties of Nilo 36

Durability: Very strong performance and toughness
Dimensional Stability: -1000C and 2600C
Flexibility: Easy to Machine. Very good weldability and workability
Near Zero: Coefficient of linear thermal expansion

Rounds (mm) Dia
25.40
50.80
63.50
76.20
82.55
88.90
101.60
114.30
127.00
133.35
146.05
152.40
165.10
177.80
203.20
215.90
222.25
235.00
300.00
Rounds (inch) Dia
1
2
2 1/2
3
3 1/4
3 1/2
4
4 1/2
5
5 1/4
5 3/4
6
6 1/2
7
8
8 1/2
8 3/4
9 1/4
11 3/4
Nilo 36 Form Size from Size to

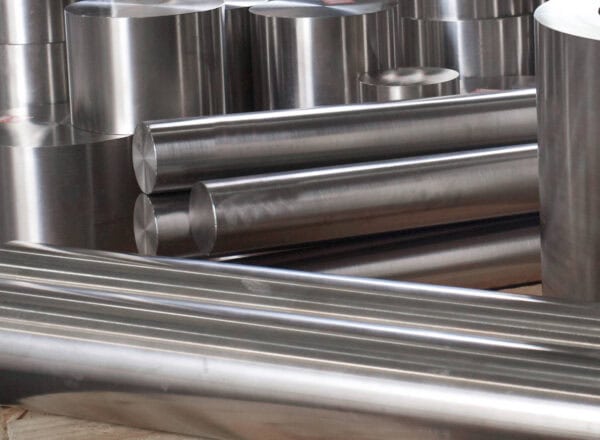

Nilo 36 Bar
25.4mm dia
1″ dia
300mm
11.81″ dia

Nilo 36 Plate
4mm
0.15″
400mm
15.7″

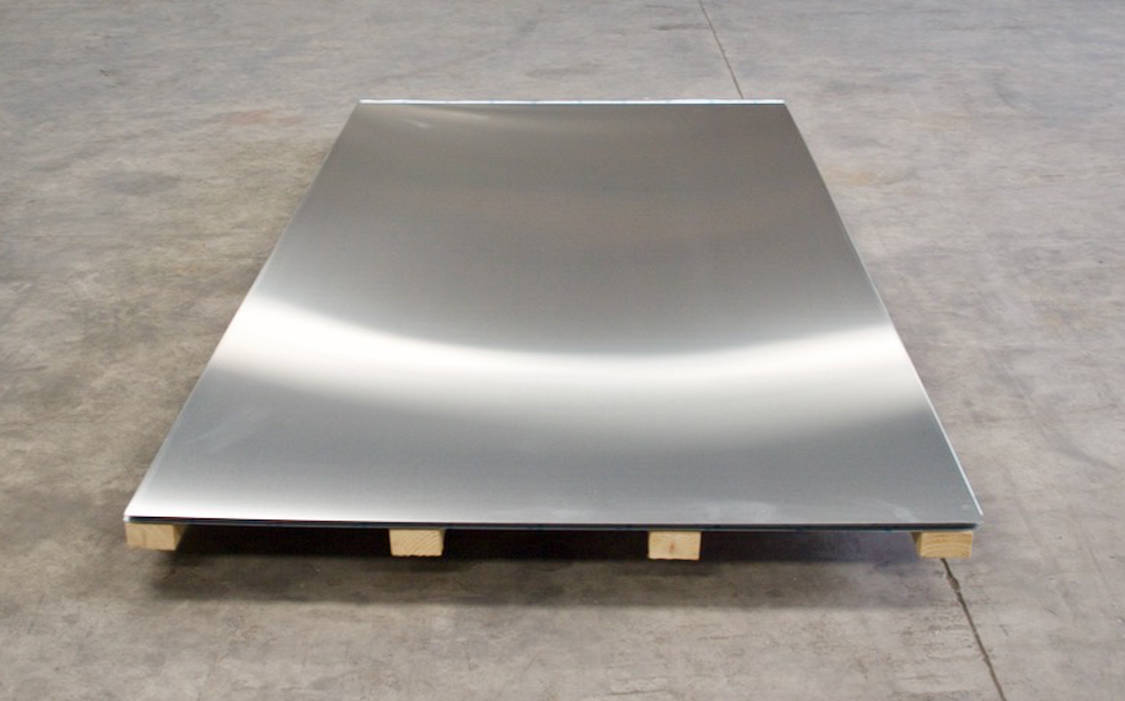

Nilo 36 Sheet
0.025mm
0.0009″
3.175mm
0.125″
UNSWR NoSEWASTMDINAFNORTrade Name
K941001.3917385F 3017745NF A54-301Nilo 36
NiCrMnPSCrSiAlCoFe
36.05.80.025.025.250.030.02.05Bal
Yield Strength (.2% Offset)Tensile Strength
psiMpapsiMpa
36,00025071,000490

Disclaimer
All data provided is for information and guidance only. Information above is not for design purposes and comes without warranty or guarantee with respect to the subject matter or fitness for purpose.
