Cast Machined Aluminium Plates Impact-700 (EN AW 7021)

Home » Products » Aluminium » Cast Machined Aluminium Plates Impact-700 (EN AW 7021)

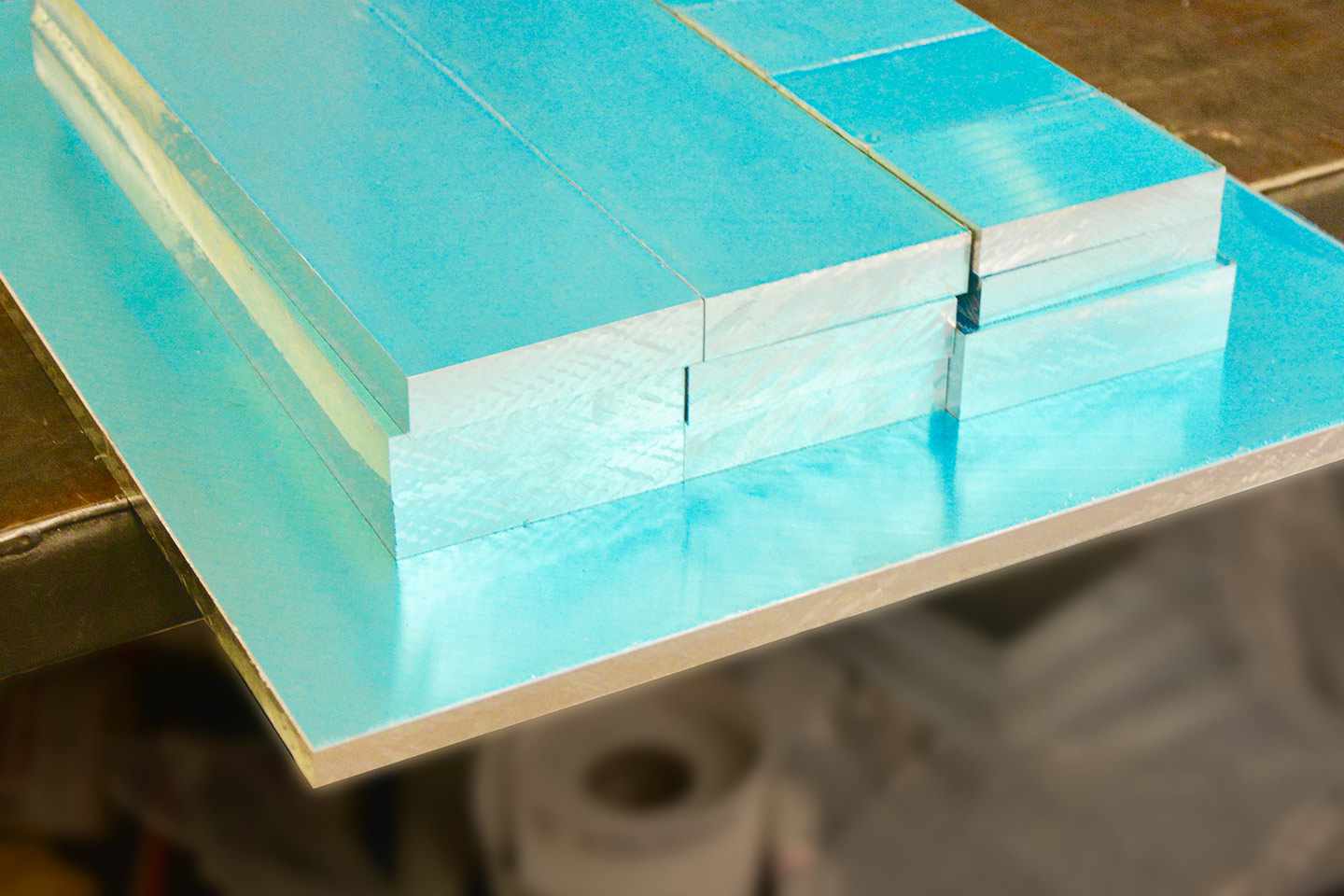

Cast-aluminium-Plates-Impact-700-(EN-AW-7021)-1

Strength & Precision, our cast machined aluminium plates combines both! To use all the advantages of this precision-machined cast aluminium plates in applications requiring higher strength levels, we distribute this material. The high strength values combined with very low residual stresses are unique and reduce the production time significantly. In addition, it has very good corrosion resistance because of the temper of T79. For this reason, in the last few years, it became a better alternative to standard rolled plates as they increase production profitability.

Because of the time saved, you can reduce manufacturing costs by using this material, especially in mechanical engineering and jig making.

This product appears in: Aluminium
Tag: aluminium

Get a Quote Call Us Email Us

Description
Technical Information

Product Overview

Alloy (According to EN 573-3) – AIZn5,5Mg1,5 heat-treatable
Temper – Solution heat-treated, quenched, artificially aged, T79
Surface – Two surfaces precision-milled 0.4 μm/0.000016 in.

Tolerances

Thickness in [mm]/[in.] – +/-0.10/+/-0.004 10-15mm:0.40/0.394-0.591 in.:0.016
Flatness [mm/m9]/[in.] – >15mm:0.25/>0.591 in.:0.010
Plate tolerances width/length [mm]/[in.] – -0/+10, -0/+0.394
Sawing tolerance width/length [mm]/[in.] – -0/+20, -0/+0.787

Specific Notes

Precision machined surface
High-stress relief
Very high strength
Very good homogeneity
Excellent form stability
Two surfaces precision-milled and foiled on both sides

Fields of Application

Mechanical engineering, jig making & tooling.

Highly stressed machine components or requiring a lot of machining
Base and table plates
Transfer and indexing plates
Components requiring high strength values combined with very low residual stresses
Tool holders

Product Overview	Precision Machined Cast Aluminium Plates
Product Name	Impact 700 (EN AW 7021)
Alloy	AIZn5,5Mg1,5
Temper	Solution heat-treated, quenched, artificially aged, T79
Surface	Two surfaces precision milled 0.4 μm/0.000016 in.

Mechanical Properties
Yield Strength Rp0,2 [MPa]/[ksi]	290-340/42-47
Ultimate Tensile Strength Rm [MPa]/[ksi]	320-380/46-55
Elongation A [%]	2.5-4.5
Hardness HBW [2.5/62.5]	110-120

Physical Properties
Density [g/cm3]/[lbs/cu.in.]	2.80/0.101
Module of elasticity [GPa]/[ksi 10³]	70/10.2
Electrical conductivity [m/mm2]/[% IACS]	21-24/38-43
Coefficient of thermal expansion [K-I 10-6]/[10-6/°F]	23.0/12.9
Thermal Conductivity [W/m K]/[BTU in./ft²hr°F]	125-155/72-90
Specific heat capacity [J/kg K]/[BTU/lb°F]	875/0.206

Processing Characteristics
Form Stability	2
Machining	1-2
Welding (Gas/TIG/MIG/resistance/EB)	6/5/2/6/1
Corrosion Resistance (seawater/weather/stress cracking)	4/3/4
Use at temperatures (max. °C long/short therms)/(max/ °F long/short Therms)	120/140/248/284
Anodising (technical/decorative/hard)	3/6/2
Polishing	1-2
Etching	2-3
Contact with food (according to EN 602)	no

Tolerances
Thickness in [mm]/[in.]	+/-0.10/+/-0.004 10-15 mm:0.40/0.394-0.591 in.:0.016
Flatness [mm/m9]/[in.]	>15 mm: 0.25/>0.591 in.:0.010
Plate tolerance width/length [mm]/[in.]	-0/+10 -0/+20/ -0/+0.394 -0/+0/787
Sawing tolerance width/length [mm]/[in.]	-0/+10 -0/+20/ -0/+0.394 -0/+0/787
