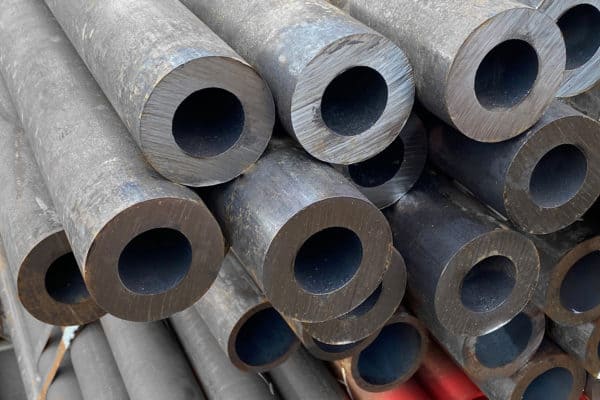

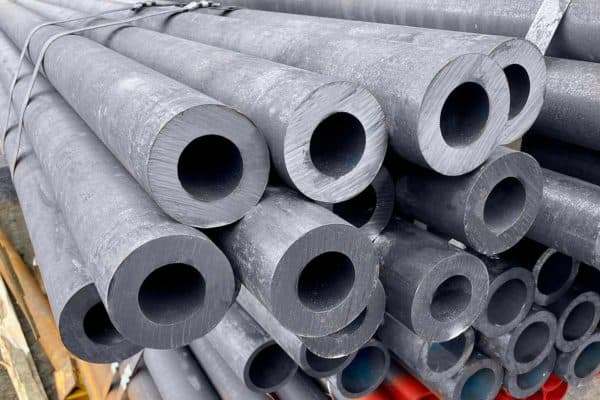

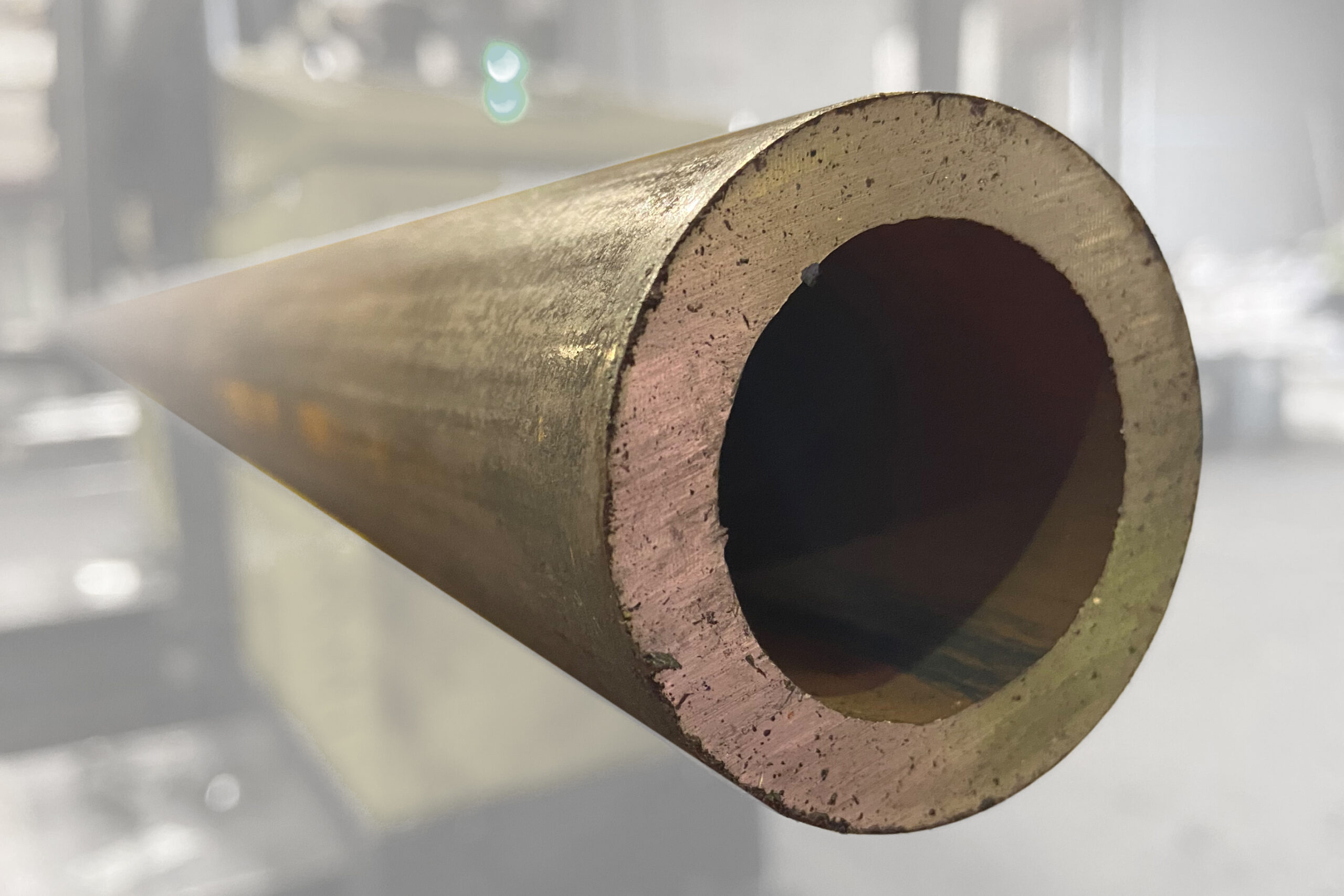

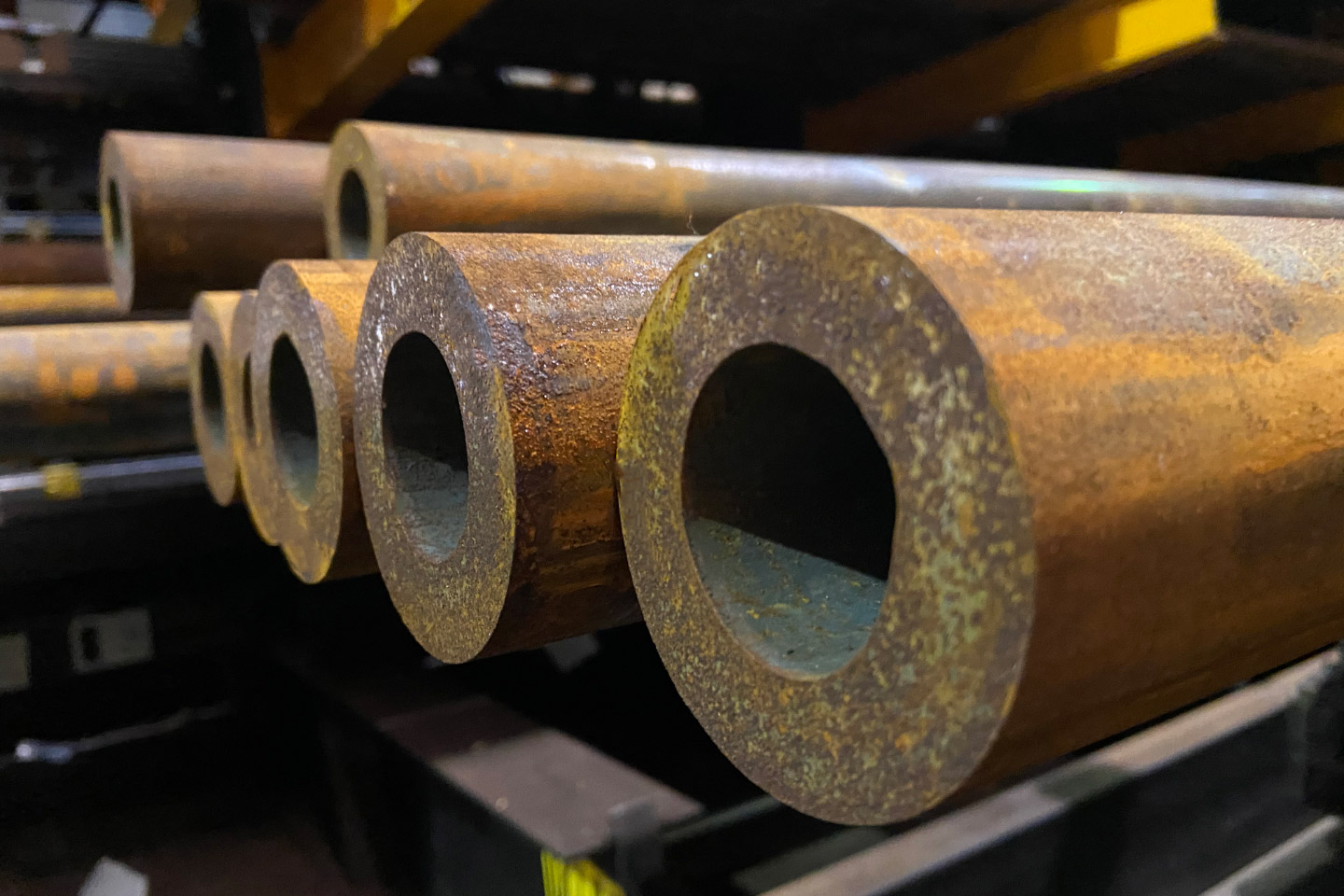

Hot Finished Hollow Bar

A Range of Hot Finished Hollow Bars for various applications in the Mechanical, Industrial and Agricultural sectors. Suitable for Welding. These tubes are designed for machining. Tolerance exists of 1% on OD and up to 12.5% on wall thickness.

To view S355J2H chemical analysis, specification or shapes & sizes please click on the tabs below.

OD/ID (mm)Wall thickness (mm)Dimensions after machining - Chucked true to OD mmDimensions after machining - Chucked true to ID mm
32/168.031.0/18.030.0/17.0
32/206.031.0/21.930.1/21.0
36/1610.035.0/18.133.9/17.0
36/208.035.0/22.034.0/21.0
36/256.635.0/26.934.1/26.0
40/2010.039.0/22.137.9/21.0
40/257.539.0/27.038.0/26.0
40/286.039.0/29.936.1/29.0
45/2012.544.0/22.242.8/21.0
45/288.544.0/30.043.0/29.0
45/326.544.0/33.943.1/33.0
50/2512.549.0/27.247.8/26.0
50/329.049.0/34.147.9/33.0
50/367.049.0/38.048.0/37.0
56/2814.055.0/30.353.7/29.0
56/3610.055.0/38.153.9/37.0
56/408.055.0/42.054.0/41.0
63/3215.562.0/34.460.6/33.0
63/3613.562.0/38.360.7/37.0
63/4011.562.0/42.260.8/41.0
63/506.562.0/51.961.1/51.0
71/3617.569.9/38.568.4/37.0
71/4015.569.9/42.468.5/41.0
71/4513.069.9/47.368.6/46.0
71/567.569.9/58.068.9/57.0
75/4017.573.8/42.572.3/41.0
75/5012.573.8/52.572.7/51.0
80/4020.078.8/42.677.2/41.0
80/4517.578.8/47.577.3/46.0
80/5015.078.8/52.477.4/51.0
80/638.578.8/65.077.8/64.0
85/4520.083.7/47.682.1/46.0
90/5020.088.6/52.687.0/51.0
90/5617.088.6/58.587.1/57.0
90/6313.588.6/65.387.3/64.0
90/719.588.6/73.187.6/72.1
95/5022.593.5/52.791.8/51.0
100/5622.098.5/58.796.8/57.0
100/6318.598.5/65.597.0/64.0
100/7114.598.5/73.497.2/72.1
100/8010.098.5/82.397.4/81.2
106/5625.0104.4/58.9102.5/57.0
106/6321.5104.4/65.7102.7/64.0
106/7117.5104.4/73.5103.0/72.1
106/8013.0104.4/82.5103.1/81.2
112/6324.5110.3/65.8108.5/64.0
112/7120.5110.3/73.7108.7/72.1
112/8016.0110.3/82.6108.9/81.2
112/9011.0110.3/92.5109.2/91.4
118/6327.5116.2/66.0114.2/64.0
118/7123.5116.2/73.8114.5/72.1
118/8019.0116.2/82.8114.6/81.2
118/9014.0116.2/92.7114.9/91.4
125/7127.0123.1/74.0121.2/72.1
125/8022.5123.1/82.9121.4/81.2
125/9017.5123.1/92.8121.7/91.4
125/10012.5123.1/102.7121.9/101.5
132/7130.5130.0/74.2127.9/72.1
132/8026.0130.0/83.1128.1/81.2
132/9021.0130.0/93.0128.4/91.4
132/10613.0130.0/108.8128.8/107.6
140/8030.0137.9/83.3135.8/81.2
140/9025.0137.9/93.2136.1/91.4
140/10020.0137.9/103.1136.3/101.5
140/11214.0137.9/116.0136.6/113.7
150/8035.0147.7/83.6145.3/81.2
150/9527.5147.7/98.4145.7/96.4
150/10622.0147.7/109.3146.0/107.6
150/12512.5147.7/128.1146.5/126.9
160/11224.0157.6/115.5155.8/113.7
160/12219.0157.6/125.4156.0/123.8
160/13214.0157.6/135.3156.3/134.0
170/11826.0167.4/121.7165.5/119.8
170/13020.0167.4/133.6165.8/132.0
170/14015.0167.4/143.5166.0/142.1
180/12527.5177.3/128.9175.3/126.9
180/14020.0177.3/143.7175.7/142.1
180/15015.0177.3/153.6176.0/152.3
190/13229.0187.1/136.0185.1/134.0
190/15020.0187.1/163.9185.5/152.3
190/16015.0187.1/163.8185.7/162.4
200/14030.0197.0/144.2194.9/142.1
200/15025.0197.0/154.1195.2/152.3
200/16020.0197.0/164.0195.4/162.4
212/13041.0208.8/134.6206.2/132.0
212/17021.0208.8/174.2207.2/172.6
224/14042.0220.6/144.8217.9/142.1
224/18022.0220.6/184.4218.9/182.7
236/15043.0232.4/155.0229.7/152.3
236/19023.0232.4/194.6230.7/192.9
250/20025.0246.2/204.9244.3/203.0

UNSMaterial Standard
E355EN 10297-1
