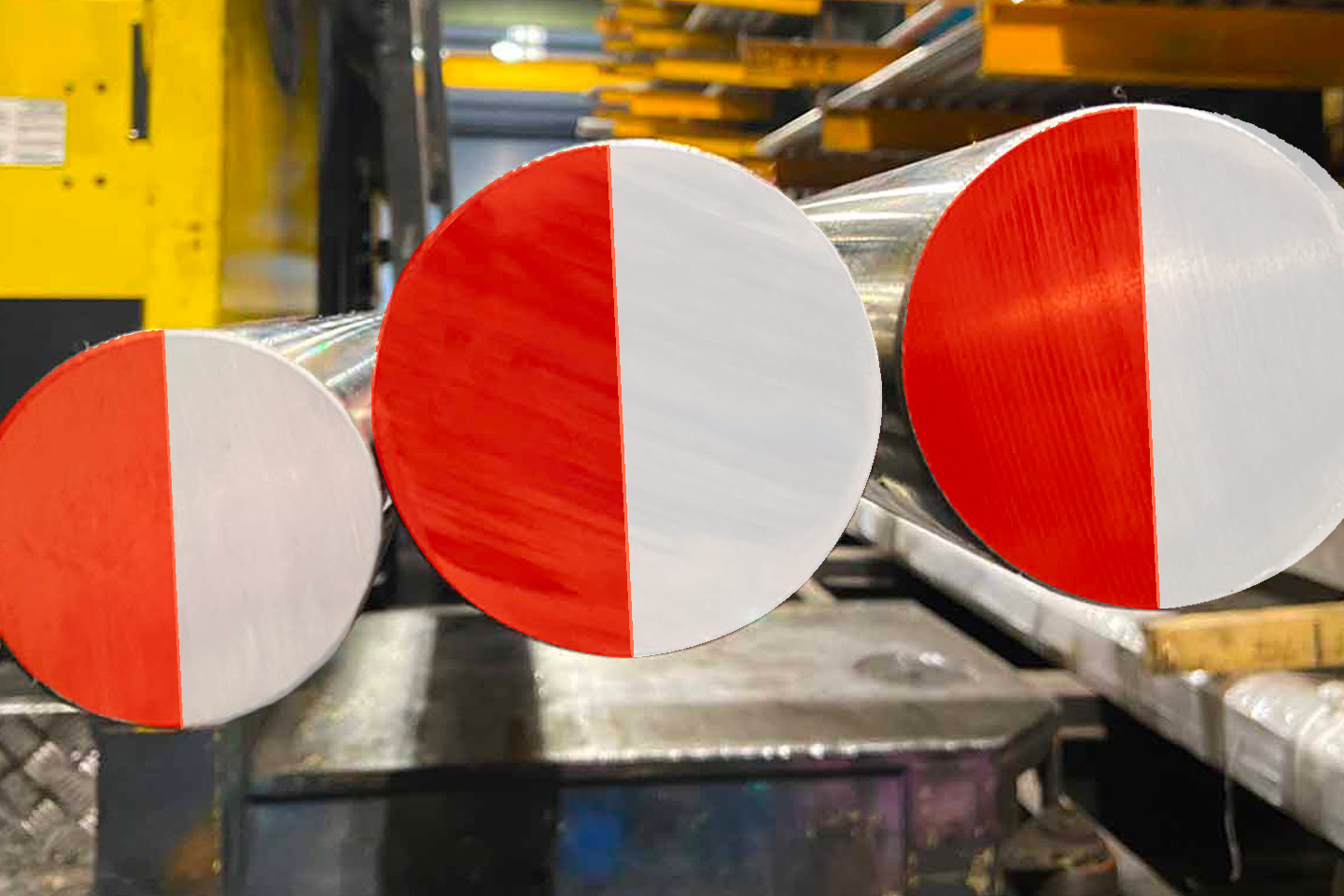

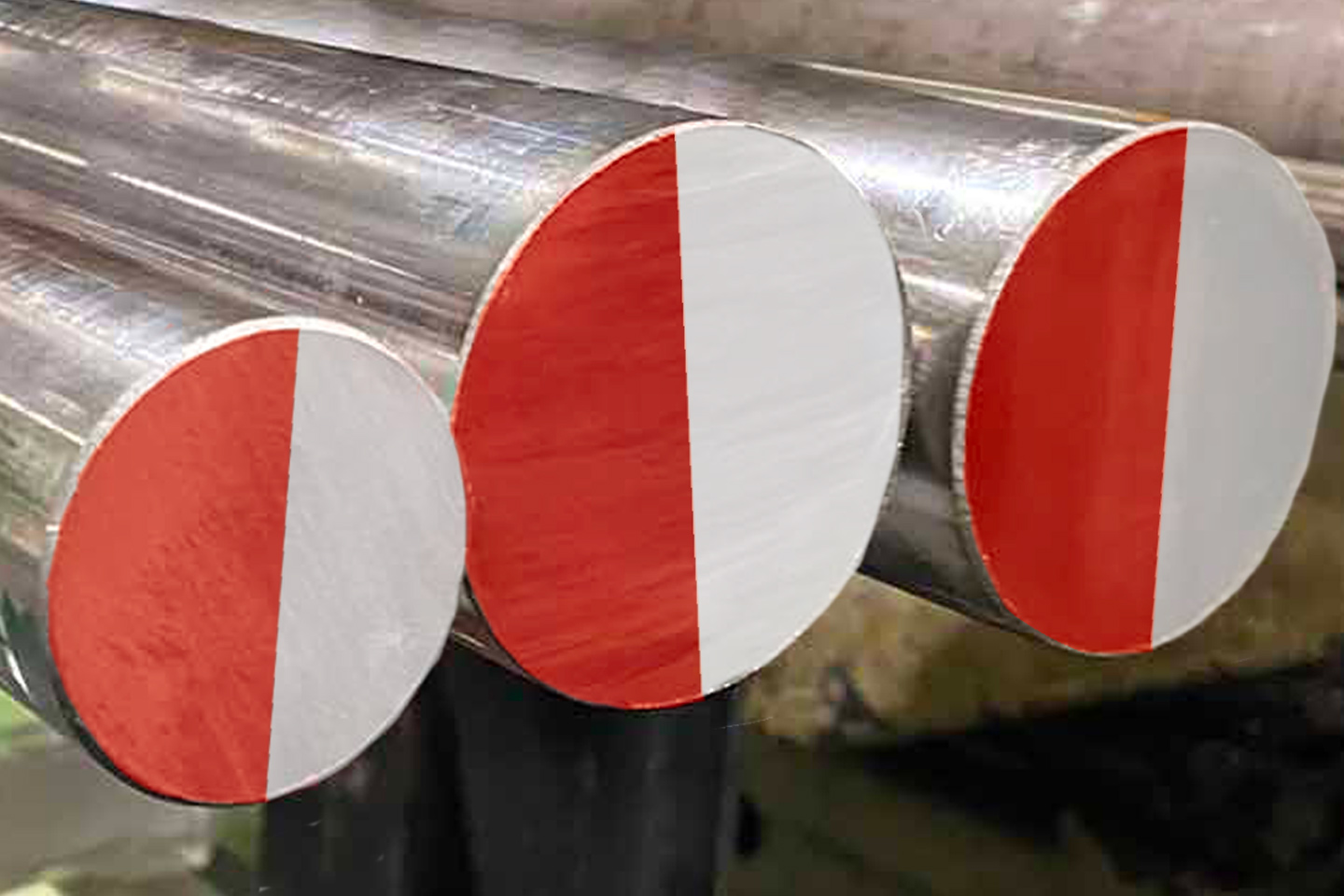

304/1.4301 & 304L/1.4307 Stainless Bar

Type 304L is one of the most widely used stainless steel grades. It is non-magnetic in the annealed condition. Type 304L is the low carbon variation of Type 304 and preferred for its welding abilities. It possesses an excellent combination of strength, corrosion resistance and fabricability.

Used extensively across all industries including chemical, pharmaceutical, medical, brewing, textile and architectural.

To view 304L Stainless Bar chemical analysis, specification or shapes & sizes please click on the tabs below.

Colour Code:
Colour Code
This product appears in:
Tag:


Rounds (mm)
2.00
4.00
5.00
6.00
7.00
8.00
9.00
10.00
11.00
12.00
13.00
14.00
15.00
16.00
20.00
22.00
25.00
28.00
30.00
35.00
40.00
45.00
50.00
55.00
60.00
65.00
70.00
75.00
80.00
85.00
90.00
95.00
100.00
105.00
110.00
115.00
120.00
125.00
130.00
135.00
140.00
145.00
150.00
155.00
Rounds (inch)
3/32
9/64
5/32
3/16
1/4
9/32
5/16
11/32
3/8
13/32
7/16
31/64
1/2
9/16
5/18
11/16
3/4
7/8
1
1 1/8
1 1/4
1 3/8
1 1/2
1 5/8
1 3/4
2
2 1/4
2 1/2
3
3 1/2
4
6
7
8
Squares (mm)
6.00
8.00
10.00
12.00
20.00
25.00
30.00
35.00
40.00
50.00
55.00
60.00
65.00
70.00
80.00
85.00
90.00
95.00
100.00
Square (inch)
1/4
5/16
3/8
1/2
5/8
3/4
7/8
1
1 1/4
1 1/2
1 3/4
2
2 1/4
2 1/2
2 3/4
3
3 1/4
3 1/2
4
Flats (mm)
20 x 10
20 x 12
20 x 15
25 x 10
25 x 12
25 x 15
25 x 20
30 x 10
30 x 12
30 x 15
30 x 20
30 x 25
40 x 10
40 x 12
40 x 15
40 x 20
40 x 25
50 x 10
50 x 12
50 x 15
50 x 20
50 x 25
50 x 30
60 x 10
60 x 12
60 x 15
60 x 20
60 x 25
60 x 30
75 x 10
75 x 12
75 x 15
75 x 20
75 x 25
75 x 30
75 x 40
100 x 10
100 x 12
100 x 15
100 x 20
100 x 25
100 x 30
100 x 40
100 x 50
100 x 60
100 x 75

This is our standard size range. If you do not see the shape, size or grade you require, please contact us as we will be happy to assist you with reaching your requirements.

EN NumberSymbolAISIUNSBS 970 1983Material Standard
1.4301X5CrNi18-10304S30400304SI5EN 10088-3
1.4307X2CrNi18-9304LS30403304S11EN 10088-3
C (304/1.4301) C (304L/1.4307)MnPSSiCrNiNFe
.08 max.03 max2.0 max.045 max.03 max.75 max18 / 208 / 12.10 maxbalance
