Cast Machined Aluminium Plates Impact-500 (EN AW 5083)

Home » Products » Aluminium » Cast Machined Aluminium Plates Impact-500 (EN AW 5083)

Commercial:Domestic storage

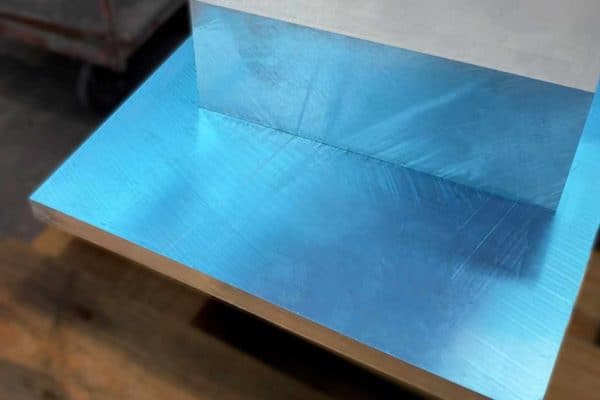

Characterised by excellent form stability, very good machinability, extremely low residual stresses and high strengths. The very fine-grained and homogeneous microstructure has almost no microporosity. Our aluminium cast machined plate is an ideal solution for precision parts with high demands. It has good form stability with extremely low residual stresses.

It is two sides precision machined and PVC Centered on both sides. The excellent flatness and thickness tolerance allows the shortest production times in areas such as mechanical engineering, gauge production and the construction of jigs and fixtures in all kinds of capital goods industries. This aluminium cast machined plate has been belt-sanded on both surfaces in the longitudinal direction, to receive a neutral surface, thus eliminating any milling marks.

This product appears in: Aluminium
Tag: aluminium

Get a Quote Call Us Email Us

Description
Technical Information

Product Overview

Alloy (According to EN 573-3) – AIMg4,5Mn0,7 3.3547 not heat-treatable
Temper – Homogenised and stress relieved, o3
Surface – Two surfaces precision-milled 0.4 μm/0.000016 in.

Tolerances

Thickness in [mm]/[in.] – mm: 0.80/0.197 in.:0.031 6-12.7 mm: 0.40/0.236-0.500 in.:0.016
Flatness [mm/m9]/[in.] – > 12.7 mm: 0.13/>0.50 in.: 0.005
Plate tolerances width/length [mm]/[in.] – -0/+10, -0/+0.394
Sawing tolerance width/length [mm]/[in.] – -0/+20, -0/+0.787

Specific Notes

Highest reproducibility
Very fine-grained structure
Very good polishability
Two surfaces precision milled
Excellent flatness
Stress relieved
Elevated strength
Very homogeneous
Outstanding corrosion resistance

Fields of Application

Electronics, the laser, packaging and optical industries and the medical and laboratory technology.

Displays and front frames
Pressure plates
Laser modules
All kinds of base & table plates
over plates
Holders of microscopes and telescopes

Product Overview	Precision Machined Cast Aluminium Plates
Product Name	Impact 500 (EN AW 5083)
Alloy	AIMg4,5Mn0,7 3.3547 Not heat-treatable
Temper	Homogenised and stress relieved, o3
Surface	Two surfaces precision milled 0.4 μm/0.000016 in.

Mechanical Properties
Yield Strength Rp0,2 [MPa]/[ksi]	110-130/16-19
Ultimate Tensile Strength Rm [MPa]/[ksi]	230-290/33-42
Elongation A [%]	10-15
Hardness HBW [2.5/62.5]	68-75

Physical Properties
Density [g/cm3]/[lbs/cu.in.]	2.66-0.096
Module of elasticity [GPa]/[ksi 10³]	70-10.2
Electrical conductivity [m/mm2]/[% IACS]	16-18/29-32
Coefficient of thermal expansion [K-I 10-6]/[10-6/°F]	23.3/13.1
Thermal Conductivity [W/m K]/[BTU in./ft²hr°F]	110-130/64-75
Specific heat capacity [J/kg K]/[BTU/lb°F]	900/0.212

Processing Characteristics
Form Stability	1
Machining	2
Welding (Gas/TIG/MIG/resistance/EB)	4/2/2/2/1
Corrosion Resistance (seawater/weather/stress cracking)	1/1/3
Use at temperatures (max. °C long/short therms)/(max/ °F long/short Therms)	180/280/356/536
Anodising (technical/decorative/hard)	2/4/2
Polishing	2-3
Etching	4-5
Contact with food (according to EN 602)	yes

Tolerances
Thickness in [mm]/[in.]	+/-0.10/+/-0.004 10-15 mm:0.40/0.394-0.591 in.:0.016
Flatness [mm/m9]/[in.]	>15 mm: 0.25/>0.591 in.:0.010
Plate tolerance width/length [mm]/[in.]	-0/+10 -0/+20/ -0/+0.394 -0/+0/787
Sawing tolerance width/length [mm]/[in.]	-0/+10 -0/+20/ -0/+0.394 -0/+0/787
